Features

■Fluoropolymer is adopted as the seal part material.
■Friction resistance is small and it is able to keep stable.
■Long stroke 300 mm[11.81 in.], heat-resistant 200 ℃[392 ?] specifications are also available.
*Please contact us as it will be custom order.

Applications

■Precision pressure control not possible with conventional cylinders.
■Precision tension control of printing machines and plastic production equipment etc.

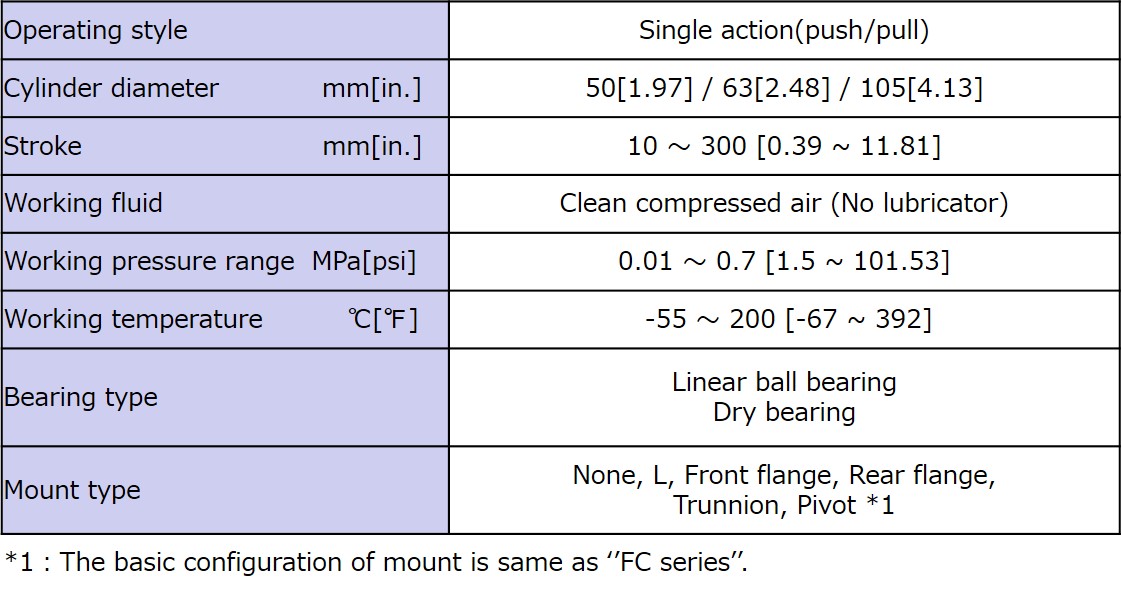

Specifications

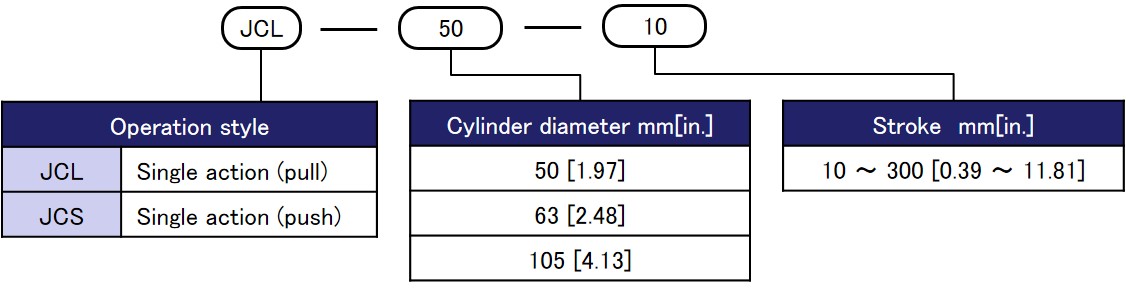

Model designation

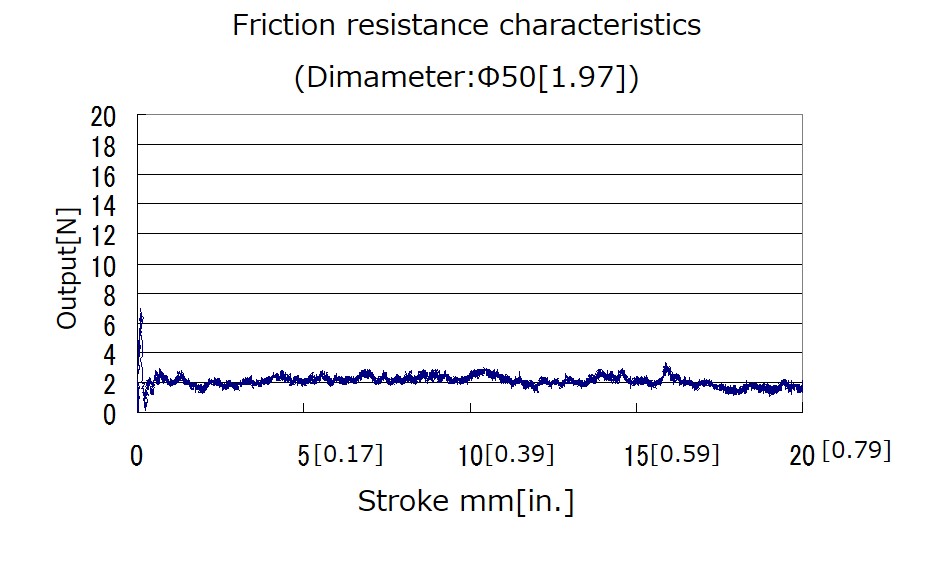

Characteristic

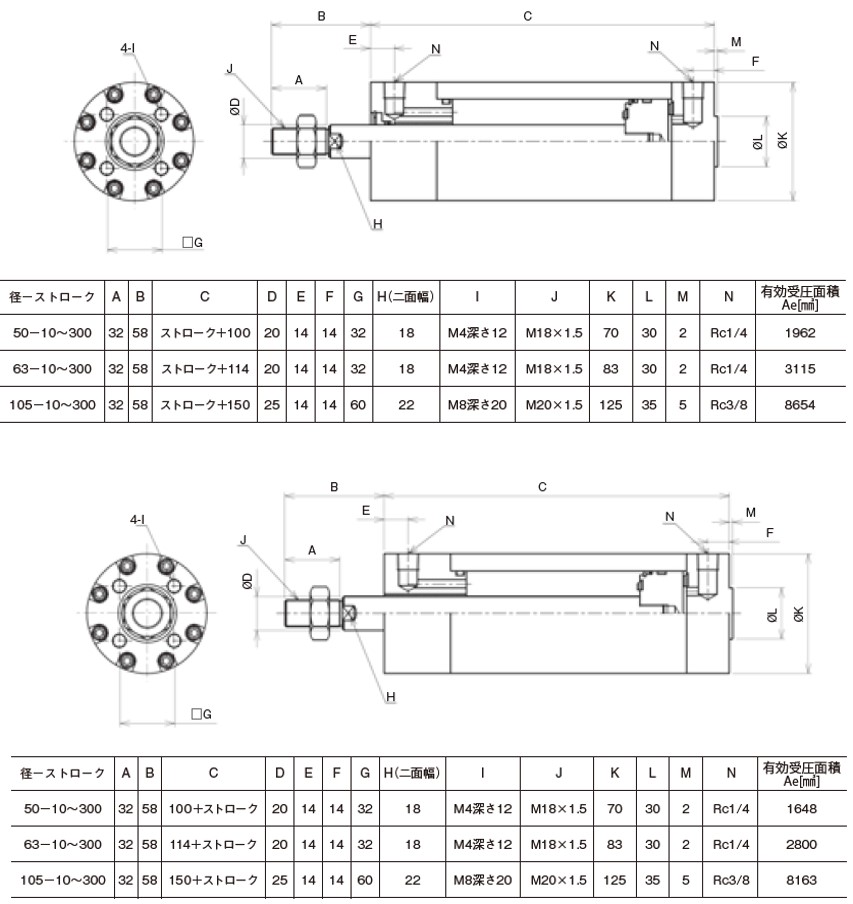

Dimensions
