Features

■High precision control
High precision air regulating by sensibility 0.1%F.S., hysteresis ±0.1%F.S.
■Excellent characteristics
Excellent especially in relief characteristics, pressure characteristics, flow characteristics Minimum relief pressure (relief sensibility) is 0.03kPa,0.004psi(theoretical value).
■Excellent start-up stability
No readjustment of regulated pressure required even after long "down-time".
■Long-term pressure stability
RS.M/S keeps the setup pressure for a long term accurately after a setup. Almost no pressure drop after setup.
■High resolving power
Five-phase stepping motor drive enables users slightly change the setup pressure by 1 step driving. Further, micro-step driving achieves high pressure resolution by 0.1kPa,0.01psi or less.
■Maintaining the pressure during electricity outage.
It keeps setup regulated pressure even in case of sudden electricity outage.

Applications

■RS.M/S is suitable for applications requiring high-resolution pressure control of 0.1 kPa or less.

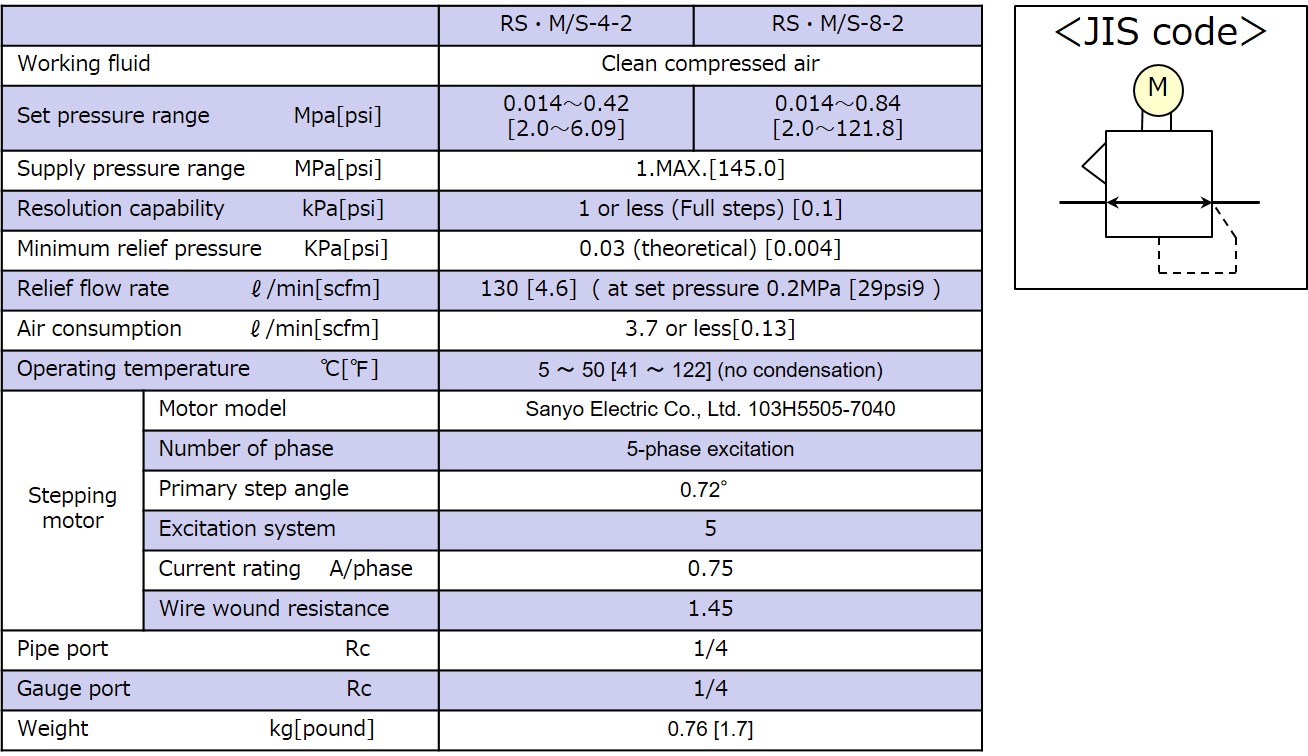

Specifications

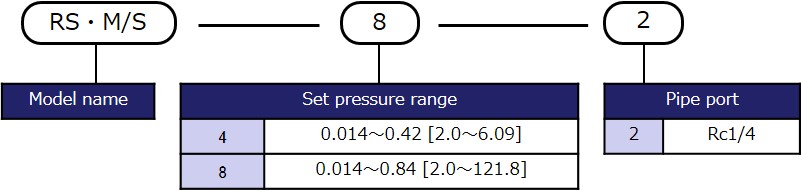

Model designation

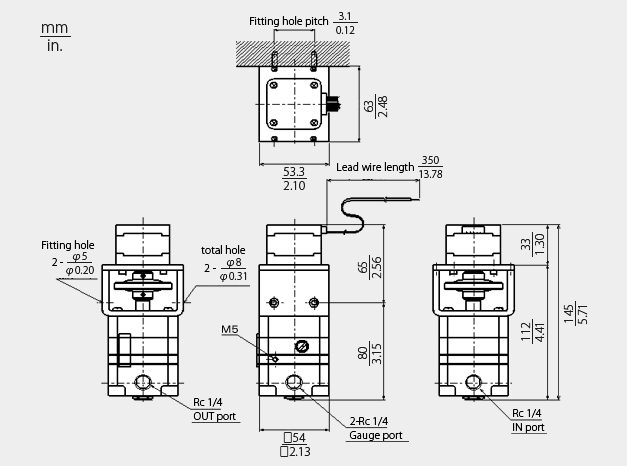

Size

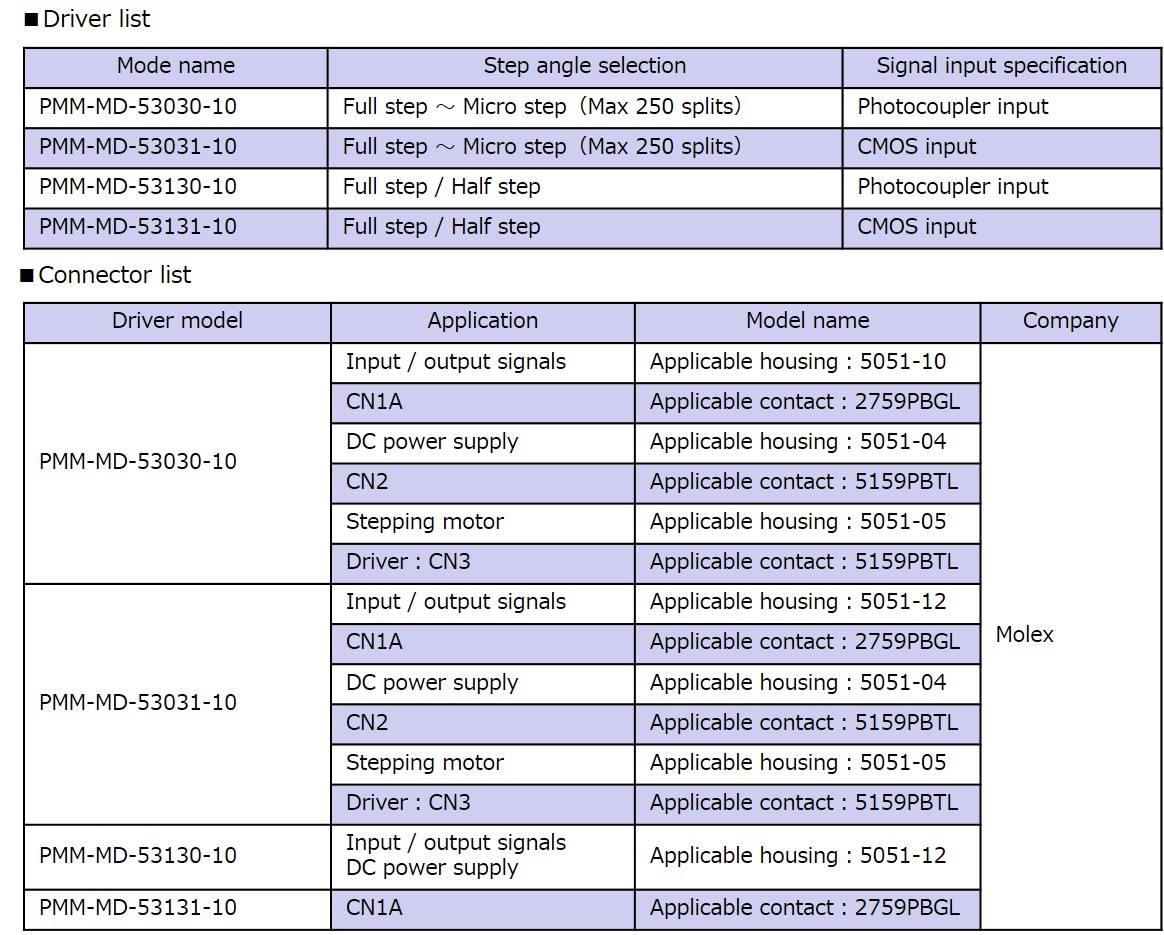

Option
