Features

■Compact (OD φ18mm[0.71inch]), Light weight (33g[0.07pound]).
■Cracking pressure is extremely low: 1 kPa[0.15psi] or less.
■Leakage is minute: 1 ml / min or less at 10 kPa[1.45psi].

Applications

■Machine Tools：Milling machine, NC lathe, laser processing machine etc.
■Industrial furnace：General industrial furnace, heating furnace, vacuum furnace, etc.
■Medical：Endoscope washing device, oxygen concentrator, anesthesia machine etc.
■Analysis equipment:Measurement equipment, component gas analysis, gas analyzer etc.
■Battery：Household fuel cell, secondary battery, gas engine etc.
■Water (liquid) treatment: Pure water production, pure water recycling.
■Gas generator related: Compressor, compact pressure vessel, various gas generator etc.
■Others: Oxygen capsule, gasoline measuring instrument, forklift etc.

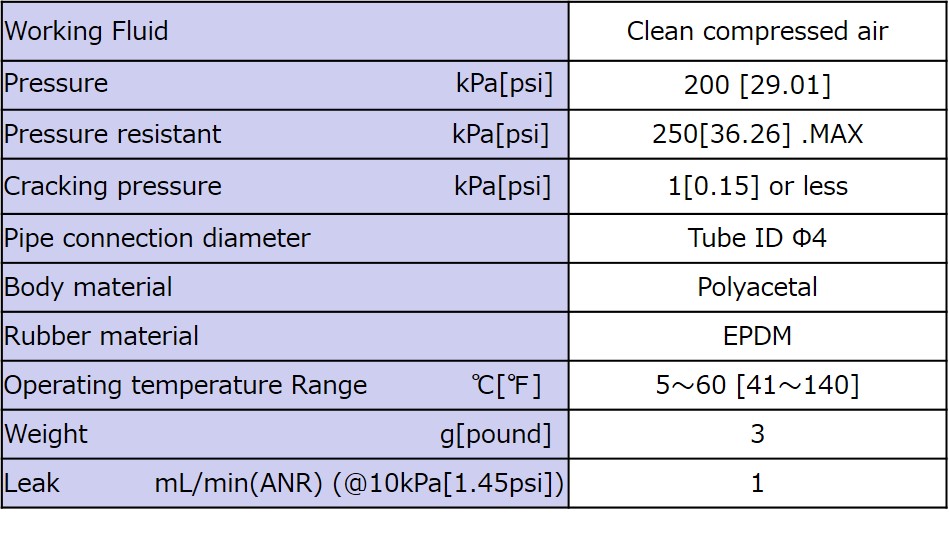

Specifications

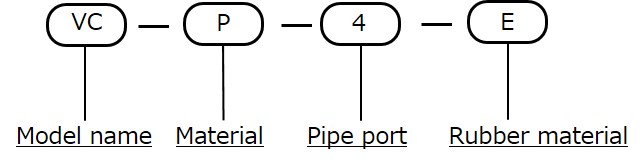

Model designation

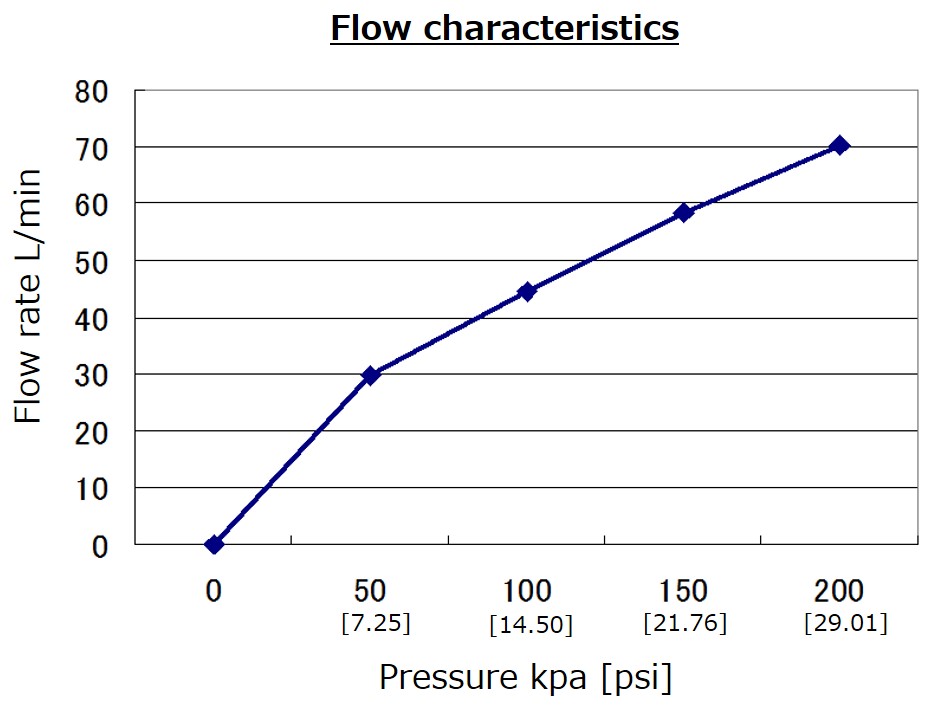

Characteristic

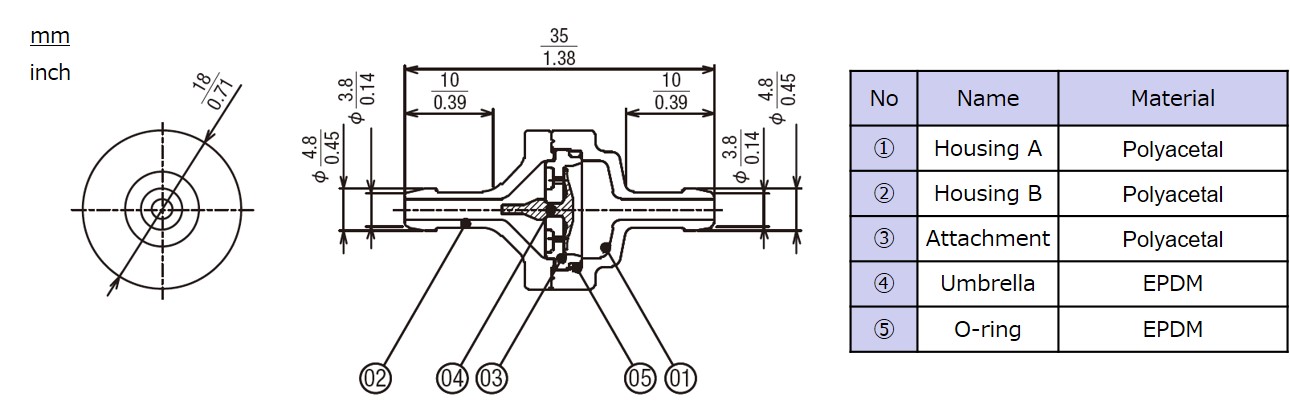

Dimensions
