产品系列: Fujikura - Others - Anti-vibration table
产品名称: FPM series(Passive-type)
FPM series(Passive-type)

FPM series adopt our bellows type air spring.
It realized high vibration isolation characteristics and thin profile.

FPM series(Passive-type)

Features

■By applying our bellows rubber to the vibration isolation table, we not only have high vibration isolation characteristics, but also realized miniaturization of the main body of the anti-vibration table and high responsiveness due to thin wall.
■We can also support dedicated design according to customer's request, such as external tank for low natural frequency adjustment and passive mount activation.

Applications

■Floor vibration reduction of precision equipment
Semiconductor manufacturing equipment, semiconductor inspection equipment, liquid crystal exposure equipment, precision measuring equipment, precision processing machine, other precision equipment etc.

Application

more

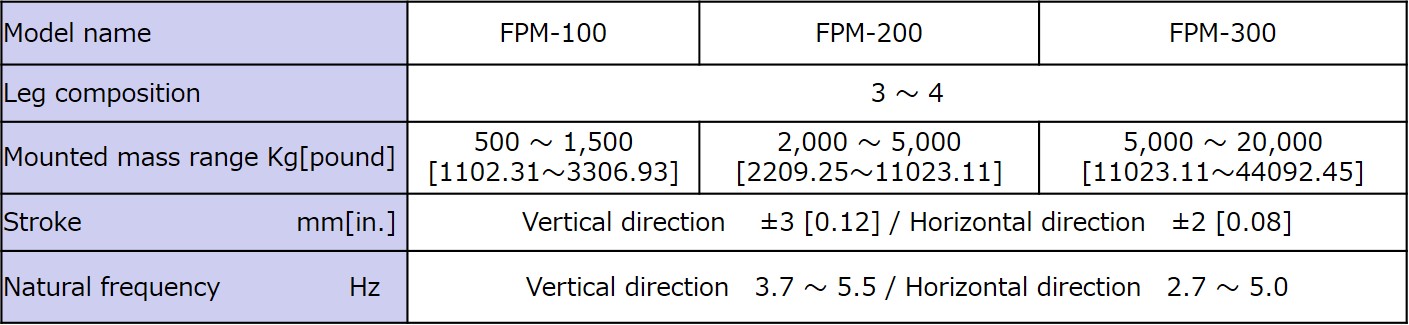

Specifications

Specifications

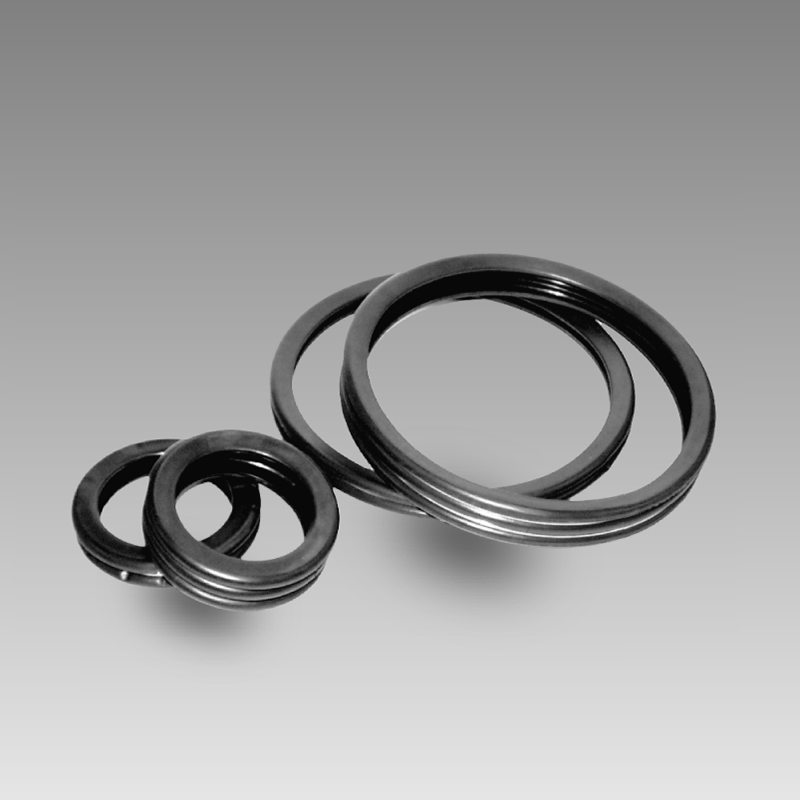

About bellows type air spring

  • Based on diaphragm manufacturing technology, bellows type air spring which has very thin but high durability has been developed and adopted for our anti-vibration table.
  • About bellows type air spring

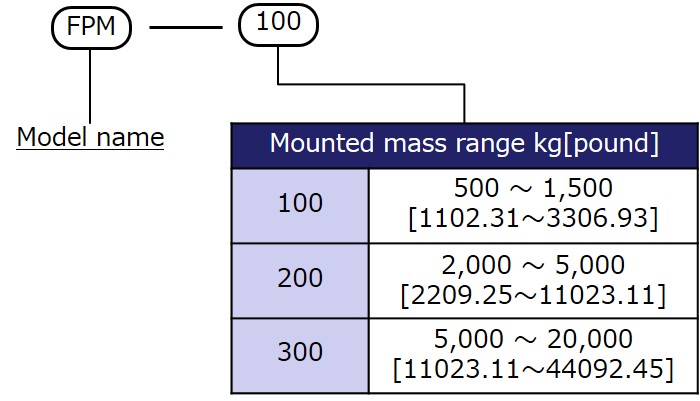

Model designation

Model designation

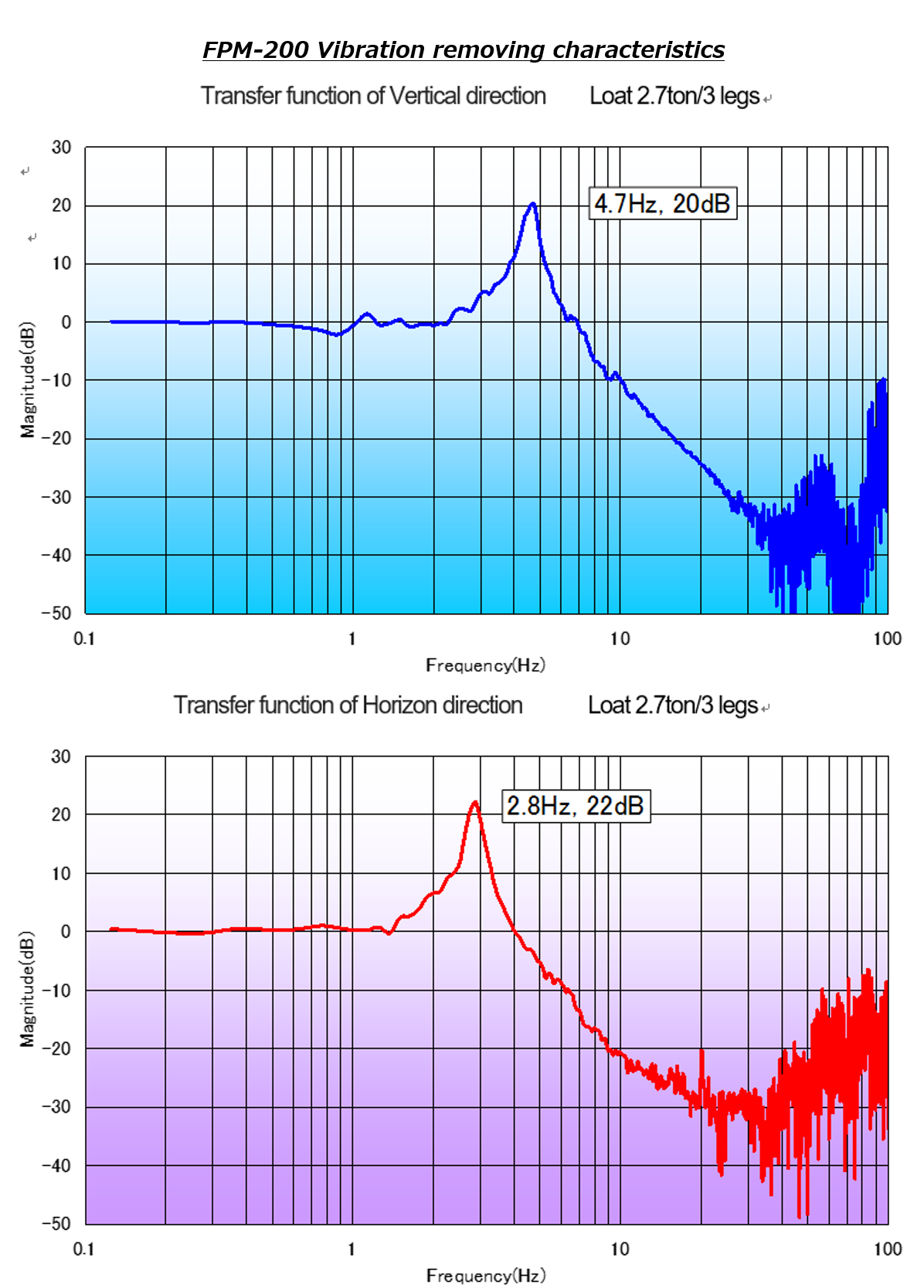

Characteristic

■Vibration isolation characteristics in low vertical direction and horizontal direction. Both the vertical direction and the horizontal direction have low natural frequency that is stable low and high vibration isolation characteristics are shown in the high frequency range.


Characteristic
