Features

■FC Series are standard type of BF Cylinders. They are designated in a variety of sizes from 10 to 200φ(0.39～7.87in.).
■Each size has both a single action type and a double action type.
■A variety of mounts, that is, L, Flange, Trunnion, Pivot are available.
(Available for cylinders of on/over 25mm(0.98in.) diameter)

Applications

BF Cylinders find its best applications in such cases where air leakage is not allowed and/or sensitive response to minute pressure variations are required.
■High sensitivity actuator for automatic controlling equipments, pressure rollers and dancer rollers.
■Air fine equipment in the clean factories without oil mist contamination.
■Polishing equipment for lenses or jewels.
■Precision actuator, etc. in case of requiring a certain output pressure (e.g. spot welding machines, etc.)
■Actuators for emergency uses.

Specifications

Features of BF diaphragm

• ■Perfect Leak-proof.
  ■Virtually no hysteresis-loss in smooth movement by rolling action.
  ■Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
  ■Smooth movement at low speed.
  ■No lubricator required.
  ■Steady working pressure range at any strokes and steady output pressure.
  ■Available to change materials and to adapt to specific circumstances or forms.
•

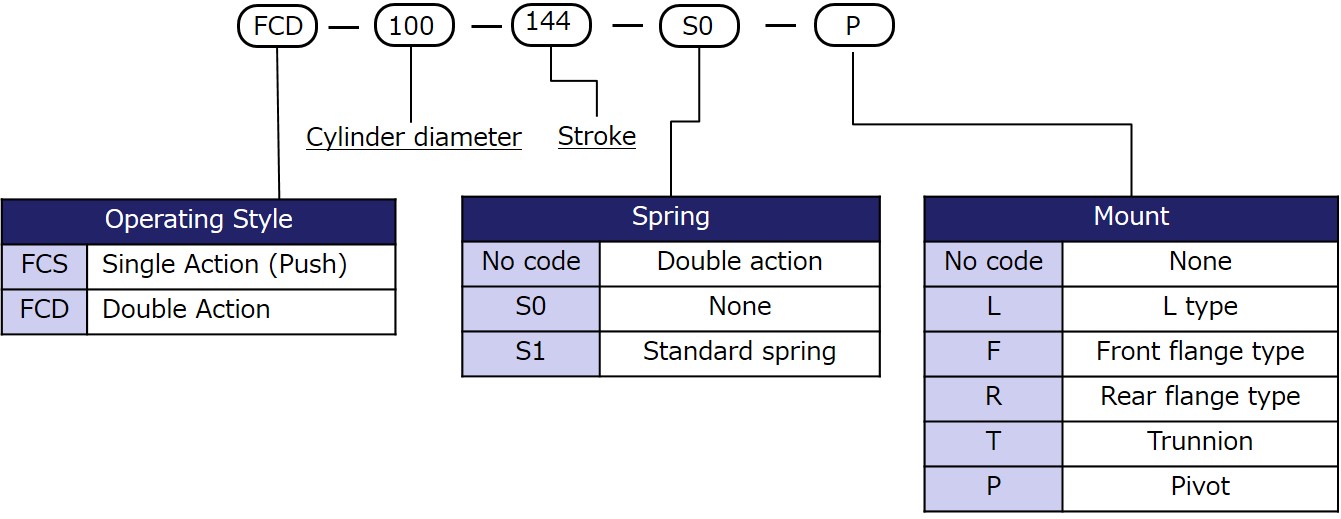

Model designation

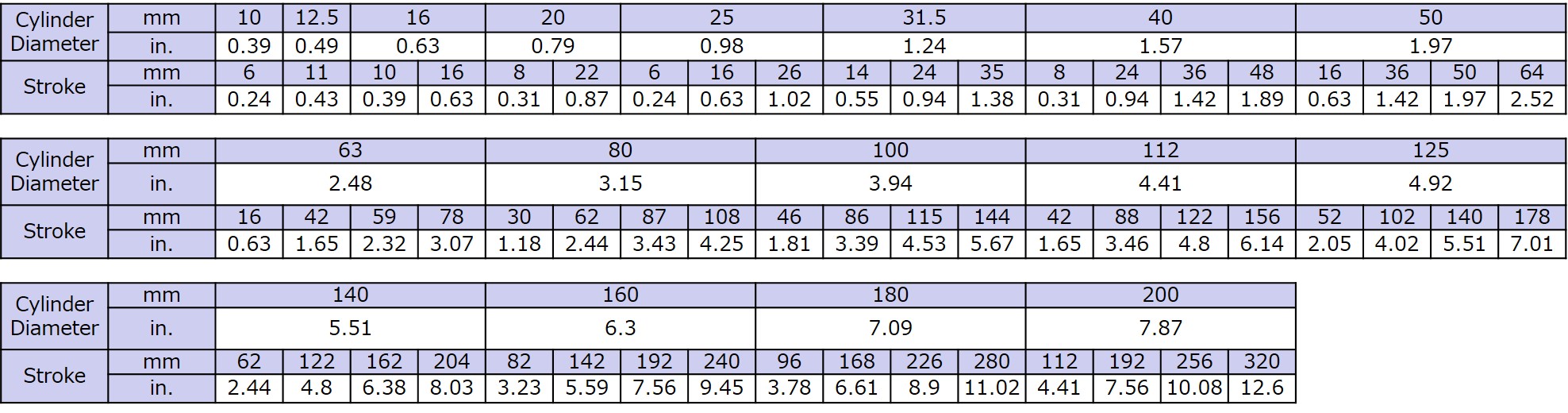

Size
