Features

■It is compact in shape and can be used in side by space saving.
■Because there is no rod seal, the resistance is the smallest among the double action type.
■Smooth operation is possible even after a long stop.
■Since there is no air leakage, almost no dust is generated.

Applications

■Precision press control (high decomposition load)：Lamination of ultrathin plates
■Tension control for film, paper, fiber
■High precision load control for lens polishing machine, crimping machine.

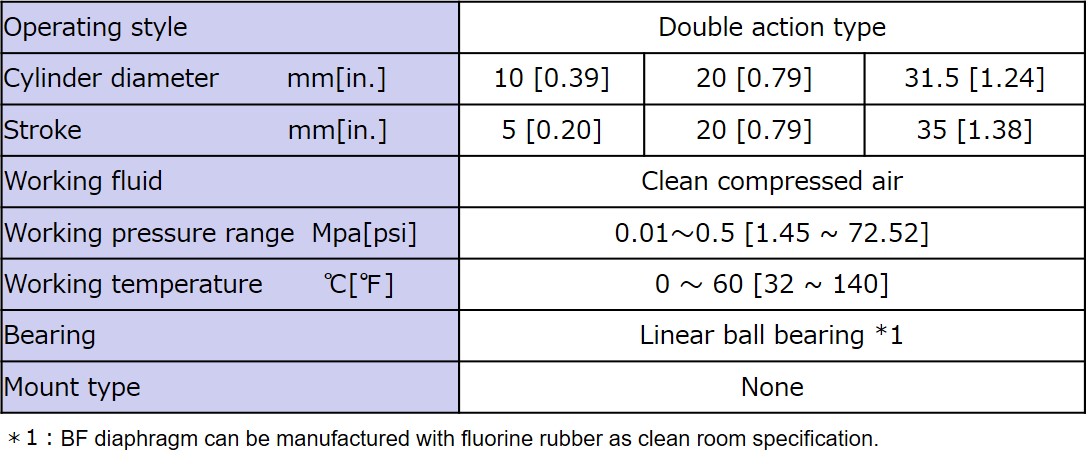

Specifications

Features of BF diaphragm

• ■Perfect Leak-proof.
  ■Virtually no hysteresis-loss in smooth movement by rolling action.
  ■Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
  ■Smooth movement at low speed.
  ■No lubricator required.
  ■Steady working pressure range at any strokes and steady output pressure.
  ■Available to change materials and to adapt to specific circumstances or forms.
•

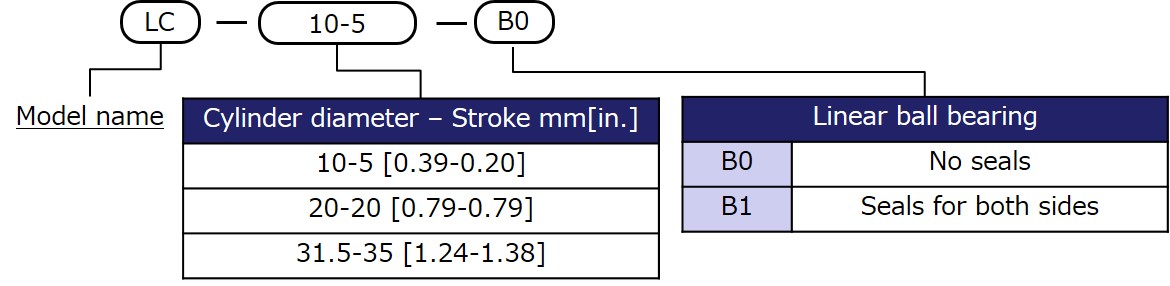

Model designation
