Features

PC cylinder is compliant with JIS, which gathered unrivaled characteristics of BF diaphragms.
■It is compliant with specifications of cylinder installing size 1PS of JIS B 8368.
■Extremely little air-leakage.
■Implanted sensor switch and sensor for ferromagnetic field to keep it from mechanical error under adverse conditions.

Applications

PC series find its best applications in such cases where air leakage is not allowed and/or sensitive response to minute pressure variations are required.
■High sensitivity actuator for automatic controlling equipments, pressure rollers and dancer rollers.
■Air fine equipment in the clean factories without oil mist contamination.
■Polishing equipment for lenses or jewels.
■Precision actuator, etc. in case of requiring a certain output pressure (e.g. spot welding machines, etc.)
■Actuators for emergency uses.

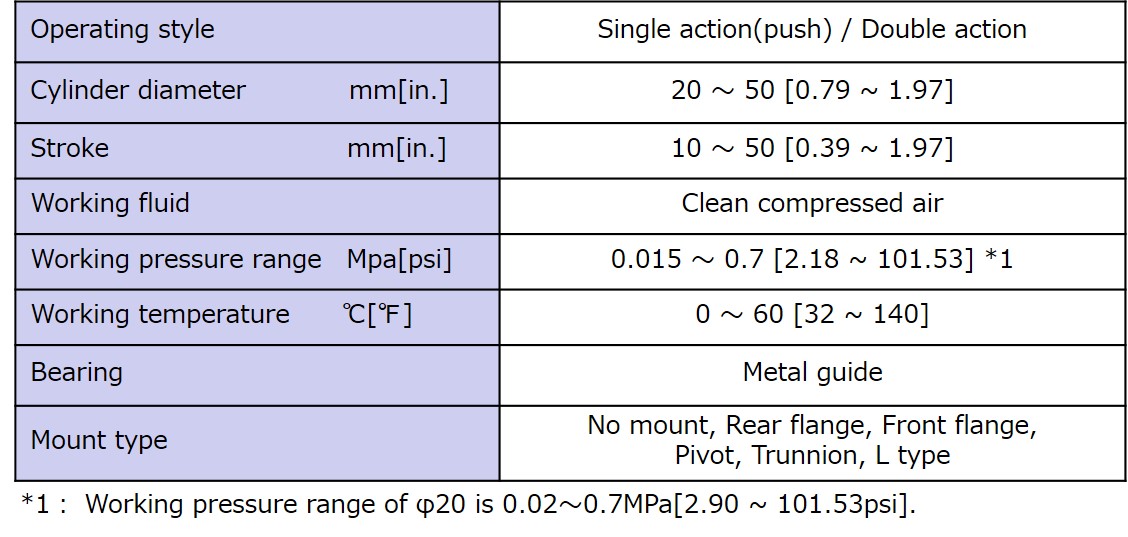

Specifications

Features of BF diaphragm

• ■Perfect Leak-proof.
  ■Virtually no hysteresis-loss in smooth movement by rolling action.
  ■Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
  ■Smooth movement at low speed.
  ■No lubricator required.
  ■Steady working pressure range at any strokes and steady output pressure.
  ■Available to change materials and to adapt to specific circumstances or forms.
•

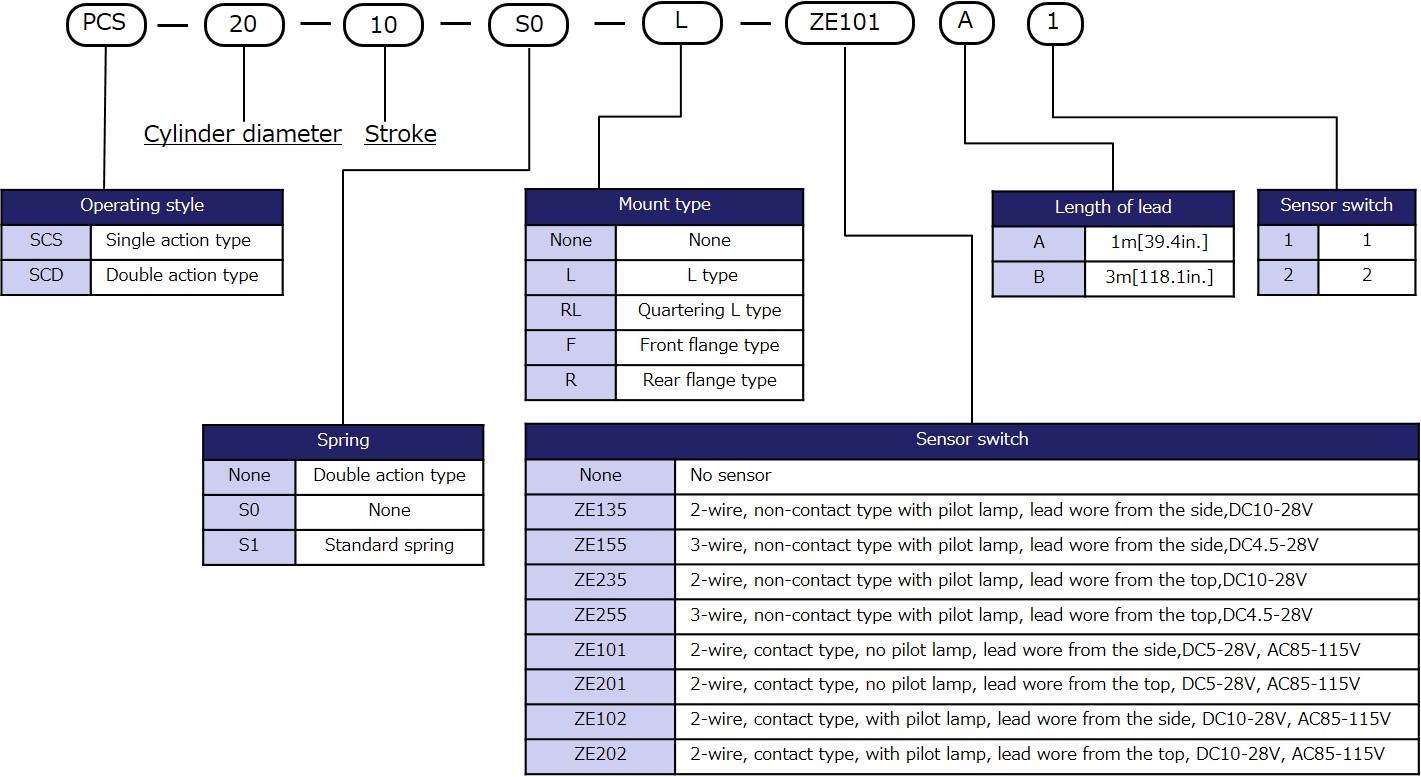

Model designation

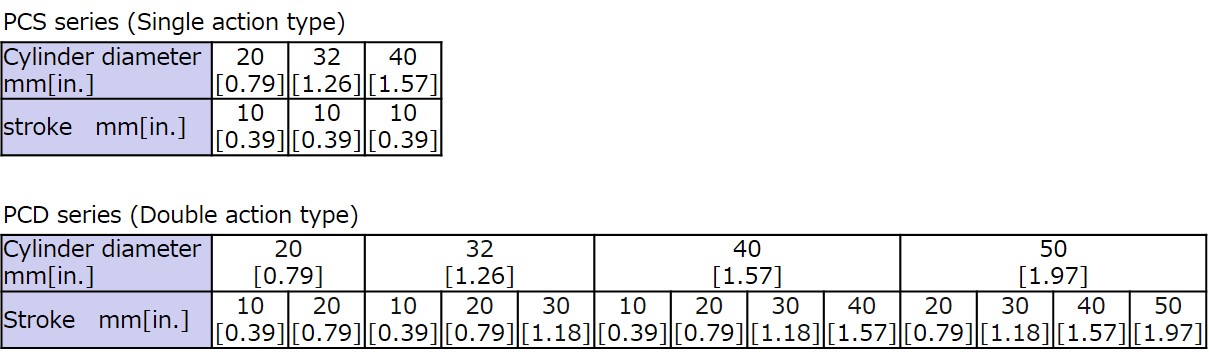

Size
