Features

■Feedback control enables further high accuracy air pressure control.
■Excellent pressure characteristics, flow characteristics and stability can be realized by feedback control.
■It is not affected by electric noise, and simultaneous control up to 32 units is possible with one controller.

Applications

■Tension control with dancer roller.
■Pressure force control of spot welding guns.
■Tension control with air brakes.
■Press control of polishing machines.
■Dispenser control of various fluid.
■Pressure control of air balancers and lifters.
■Pneumatic control of control valves.
■Handling force control of robotic hands.
■Coasting around control in programmed paid spray system.

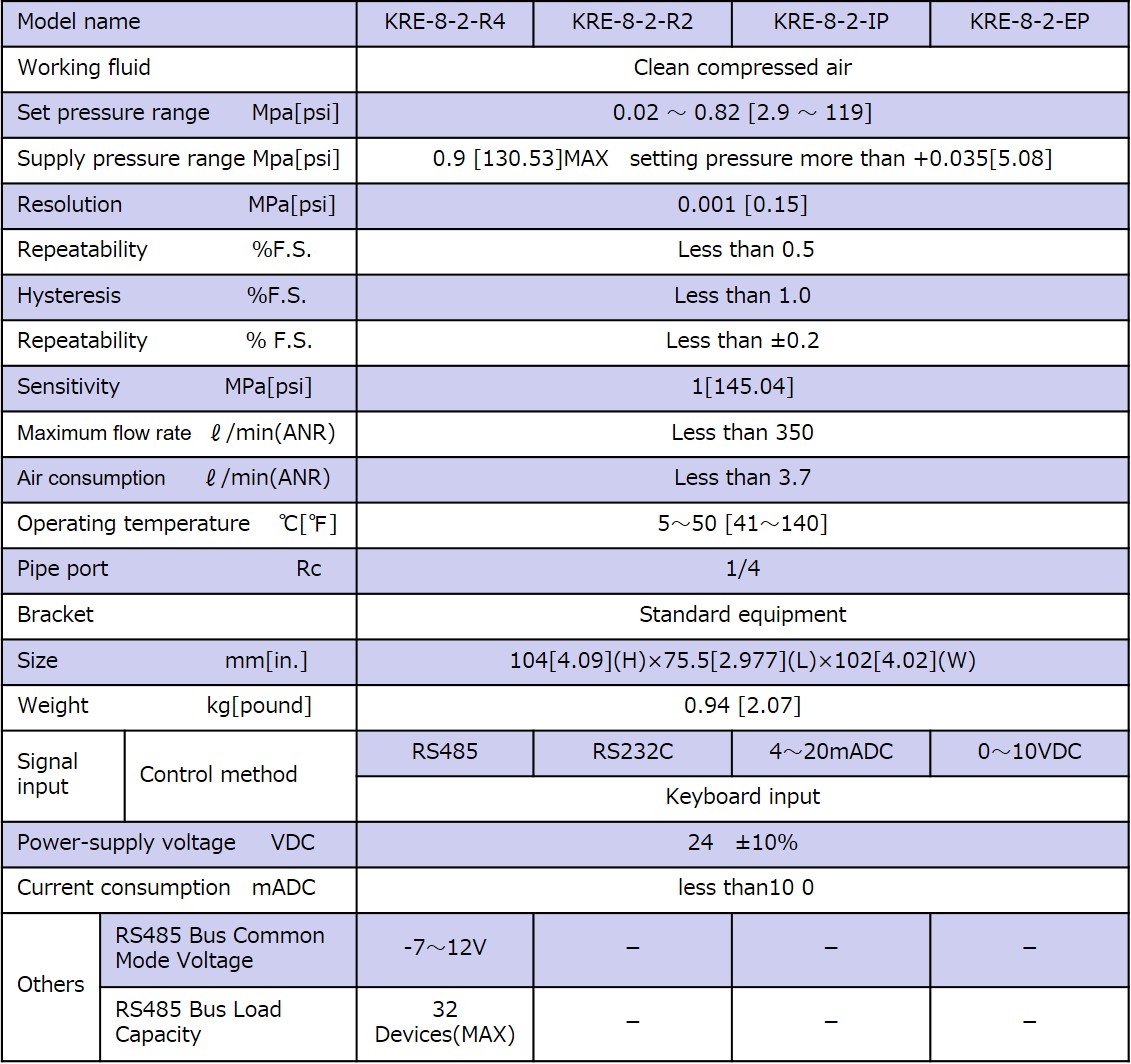

Specifications

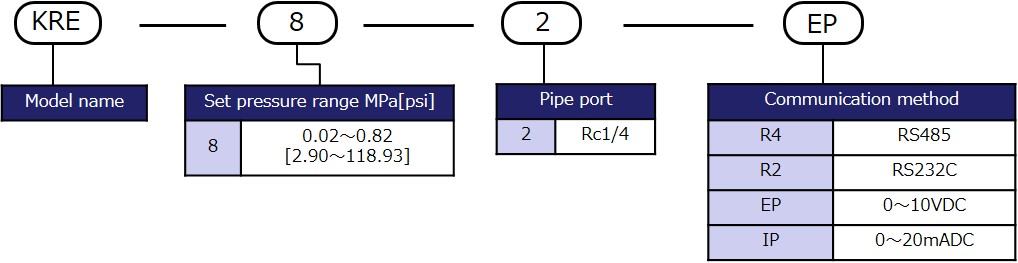

Model designation

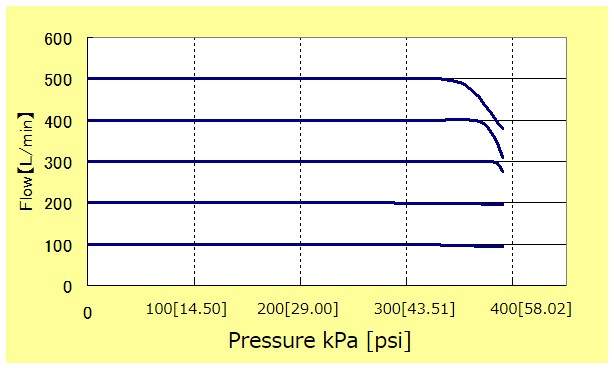

Characteristic

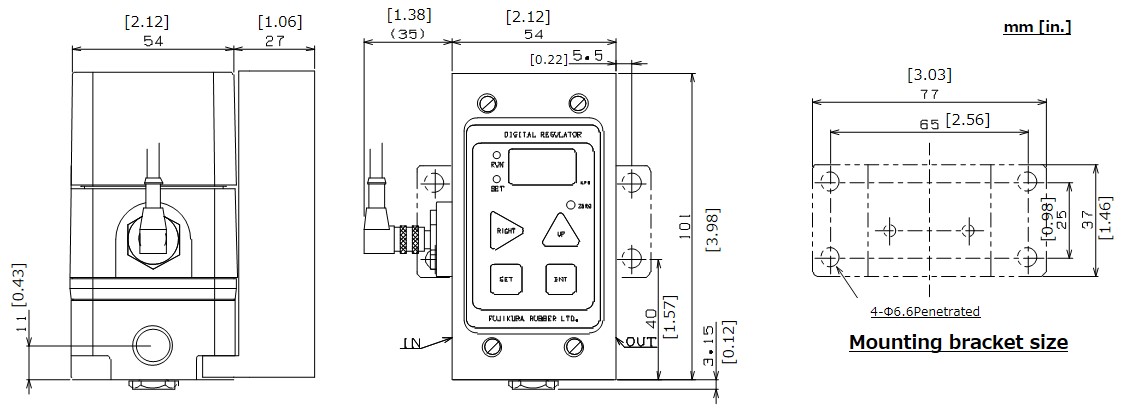

Dimensions
