Features

The small regulator ''RA series'' also supports large flow rates and can be fixed with a manifold. Furthermore, this push-locking type makes it easy to set the pressure.
■Compact and light(130g[0.3pound])
■Figures are also available for mounting manifold.
■Available for no oil specification(RA series only).
■Repeatability ±0.3～1.0％F.S.
■Excellent in pressure and flow characteristics.
■Bush-lock type knob.
■Ｃorrespond to a clean room by custom order.

Applications

■It is suitable for applications requiring small size and flow rate.

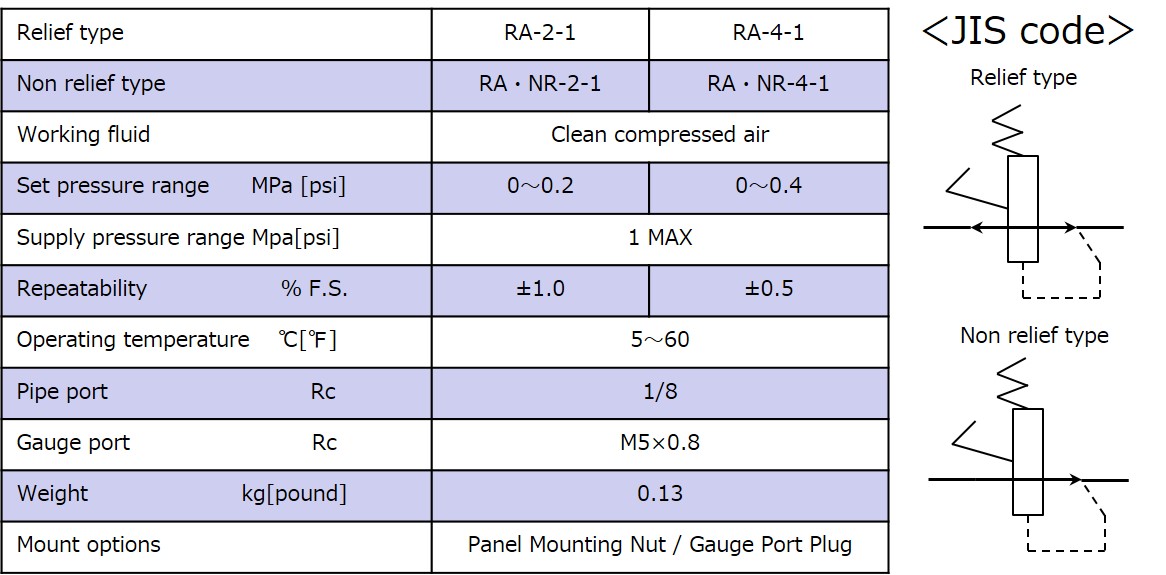

Specifications

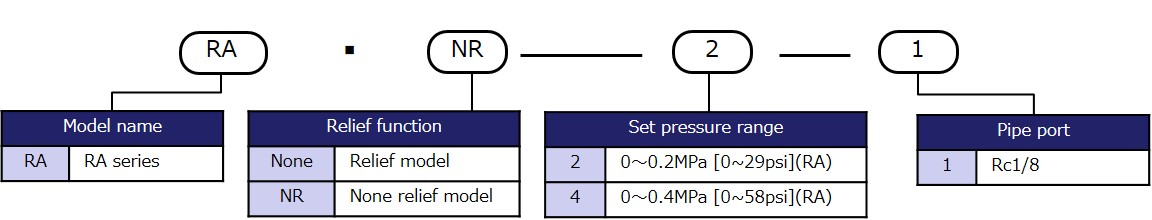

Model designation

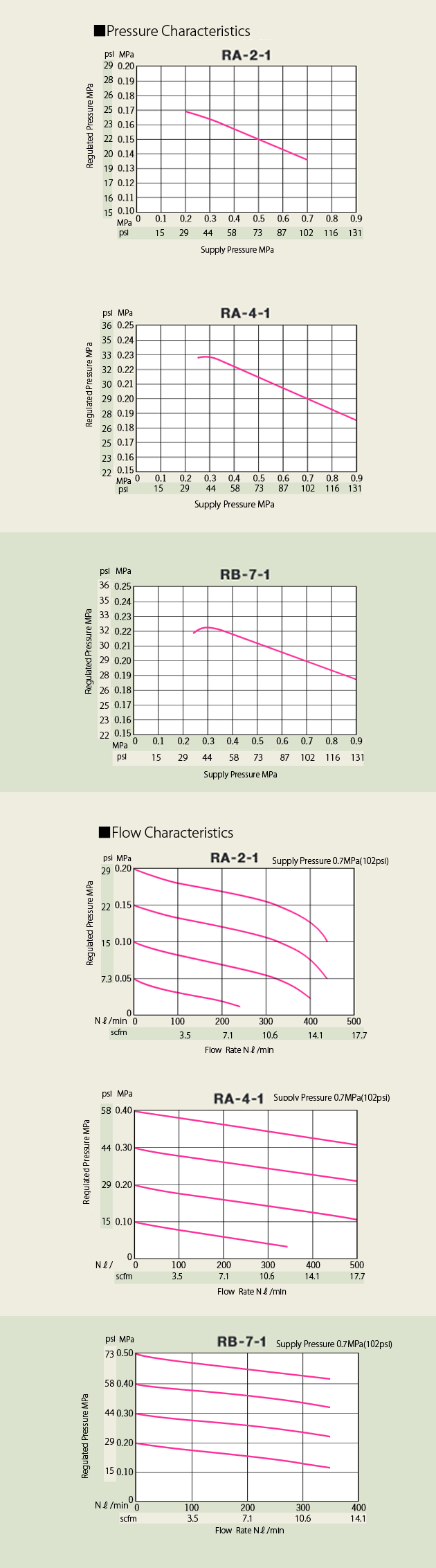

Characteristic

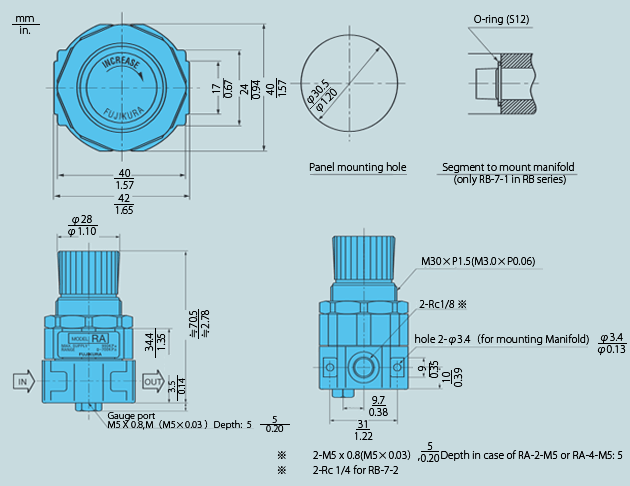

Dimensions
