Low-profile precision air regulator with the same capability with ''RP series'' in fractional pressure and fluid rate at 5L/min(0.18scfm) or under. Best suitable for saving space.

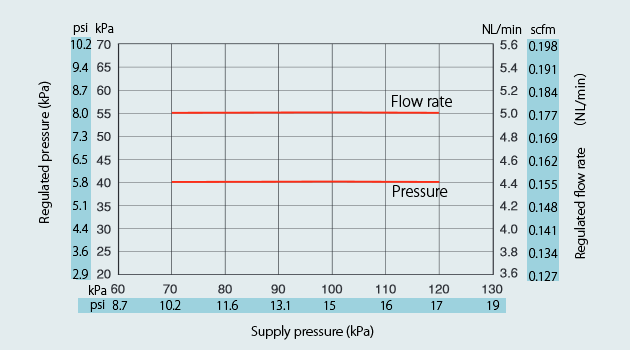

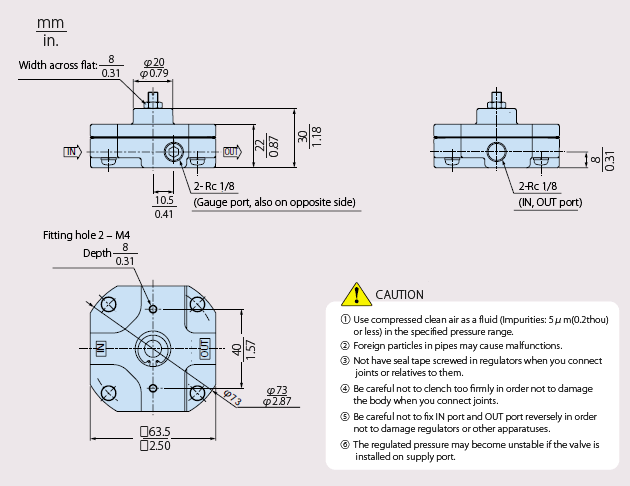

■The height to the bonnet is 30mm thick(1.18 in.), one third that of the precision air regulators of RP series. This product is best suited for installing in saved space and compact design. ■At a small flow rate, it demonstrates performances equivalent to that of the precision regulators RP series in a small flow. ■It is superior in pressure reproducibility while featuring direct-acting response.
■Ideal for applications requiring a compact design for low pressure applications, such as oxygen concentrators.
Application
