’RV series'' has high accuracy of pressure as vacuum regulator. Direct acting type allows little air leakage, and an efficient controlling of pressure from primary side. Port size:1/4 , 3/8

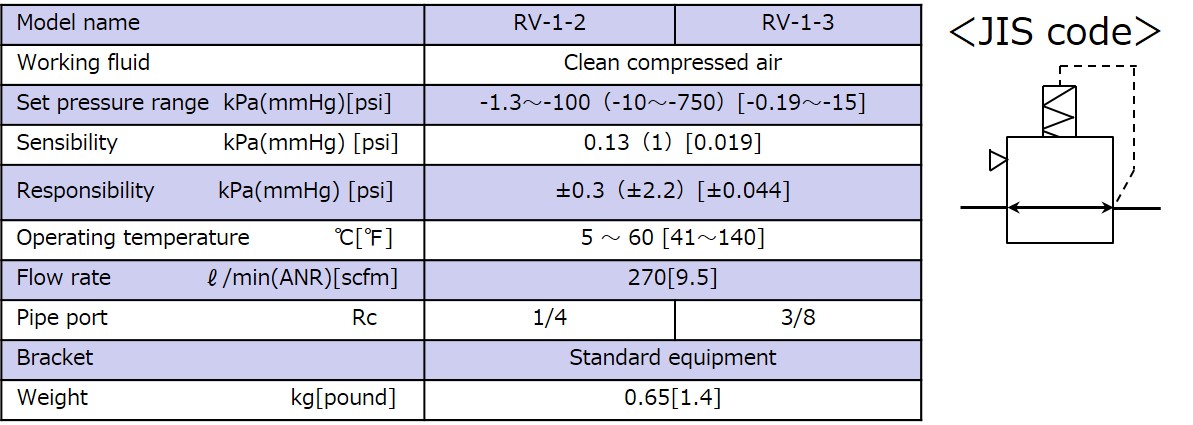

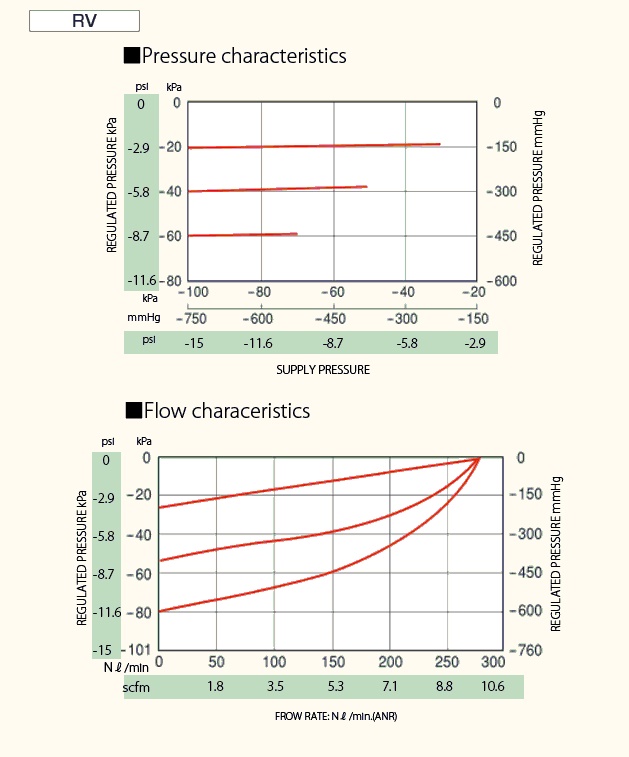

■Available to control degree of vacuum with high accuracy at sensibility 0.13kPa(1mmHg)[0.019psi], repeatability 0.3kPa(±2.2mmHg)[0.044psi] or under. ■Output pressure is almost not affected (within 0.5% F.S) by. supply pressure variation. ■Applicable for use with large flow because of its maximum flow rate 270/min (normal)[9.5scfm]. ■This regulator responds sensitively against regulated pressure variations.
■''RV series'' is ideal for applications requiring high precision, high flow rate vacuum control.
