Features

Servo-balanced system comprising rolling diaphragm and measuring capsule provides exceptionally precise and stable pressure control with constant bleed feature.
■High precision pressure control with sensitivity 0.1%F.S., repeatability ±0.1%F.S. is available.
■Very superior in relief, pressure, flow sensitivities. Particularly, minimum relief pressure (relief sensitivity) as low as 0.03kPa,0.004psi(theoretical value) finds best applications in tension control and air-balancer, etc.
■No readjustment of regulated pressure required even after long "down-time".

Applications

■Tension control
Combination with BF cylinders (SC series)
Printing machines, paper craft machines, plastic film fabricating machines, textile machines, etc.
■Press control
Combination with BF cylinders
Grinding machines, friction testing machines, soil tester, cutter, etc.
■Volume booster
Valve regulators relating to instrumentation devices, etc.
■Set pressure of various regulated pressures by remote-control.
Best applications for air-balancer, air-micrometer, leak tester, dispenser and others.

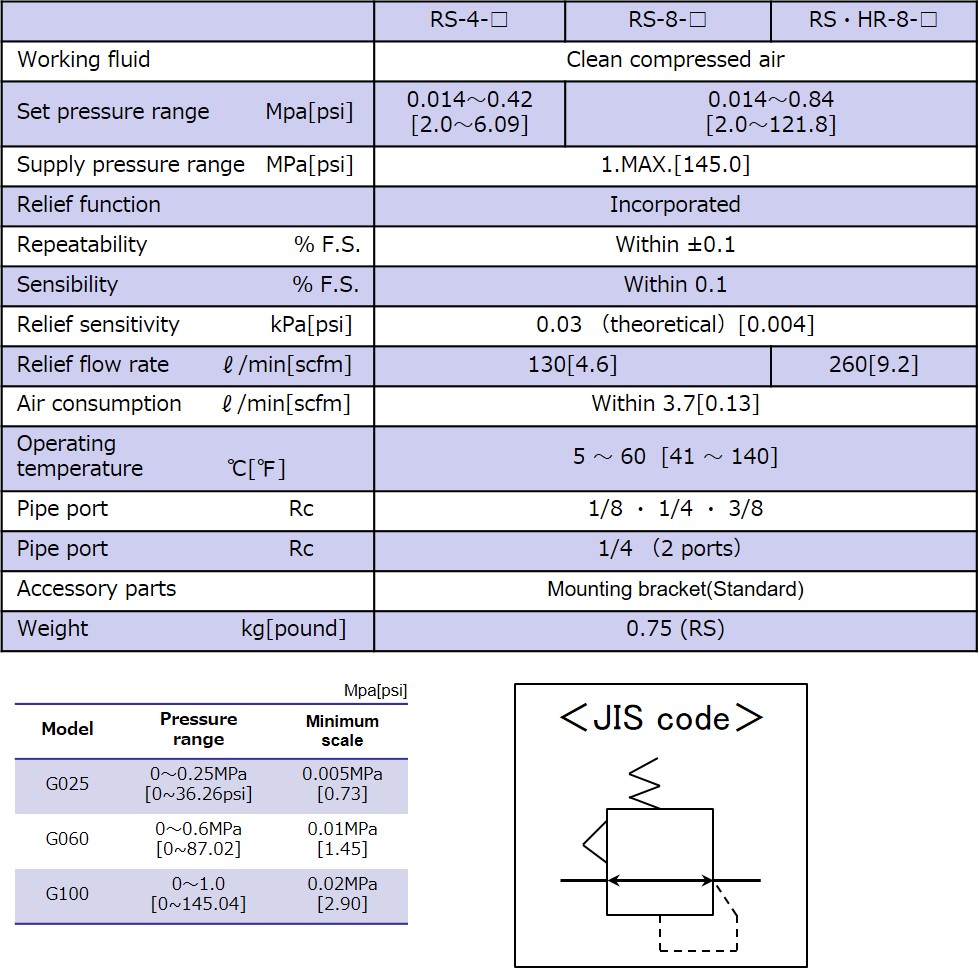

Specifications

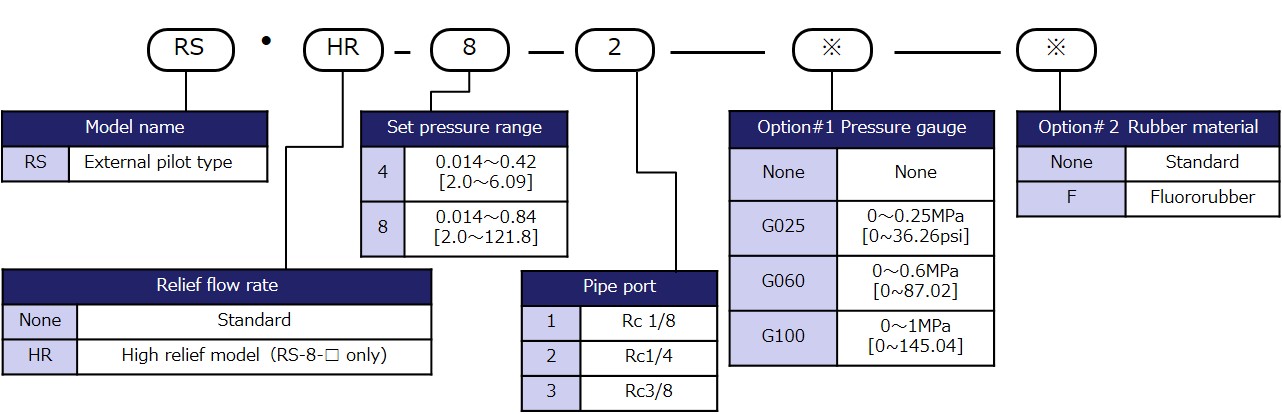

Model designation

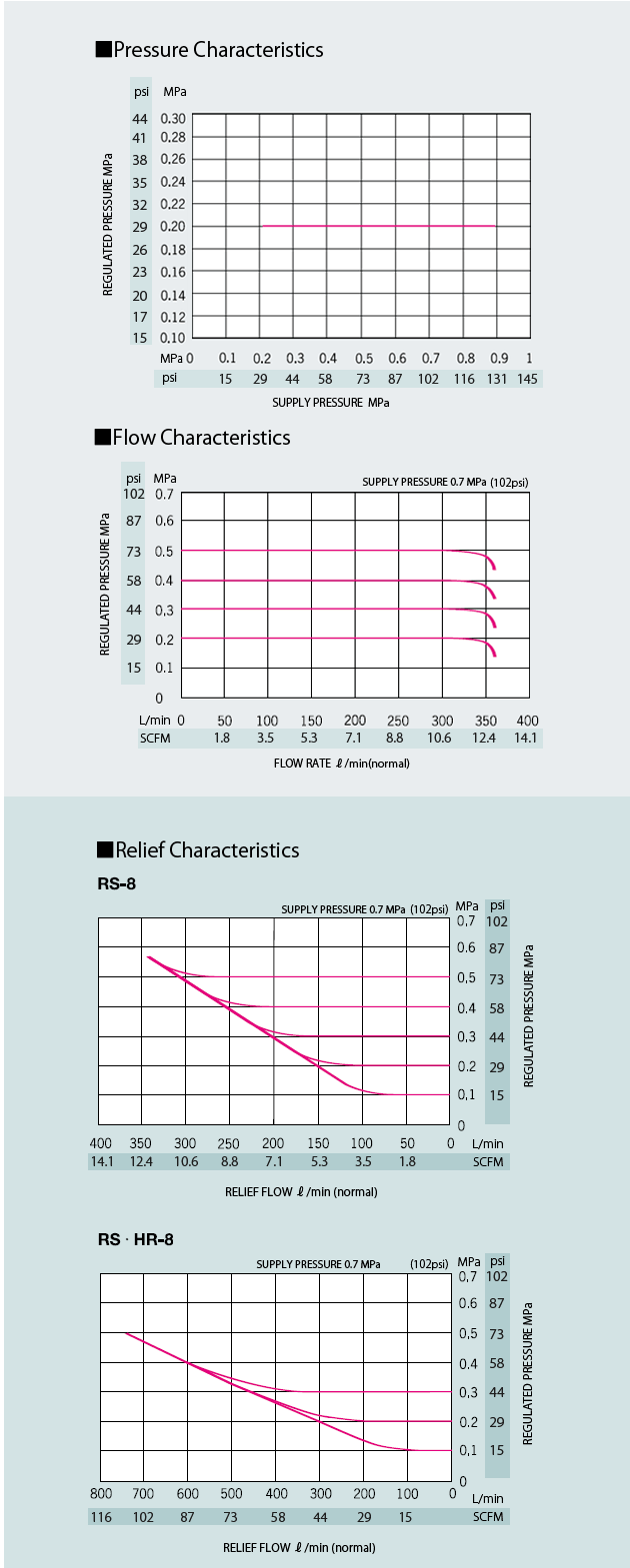

Characteristic

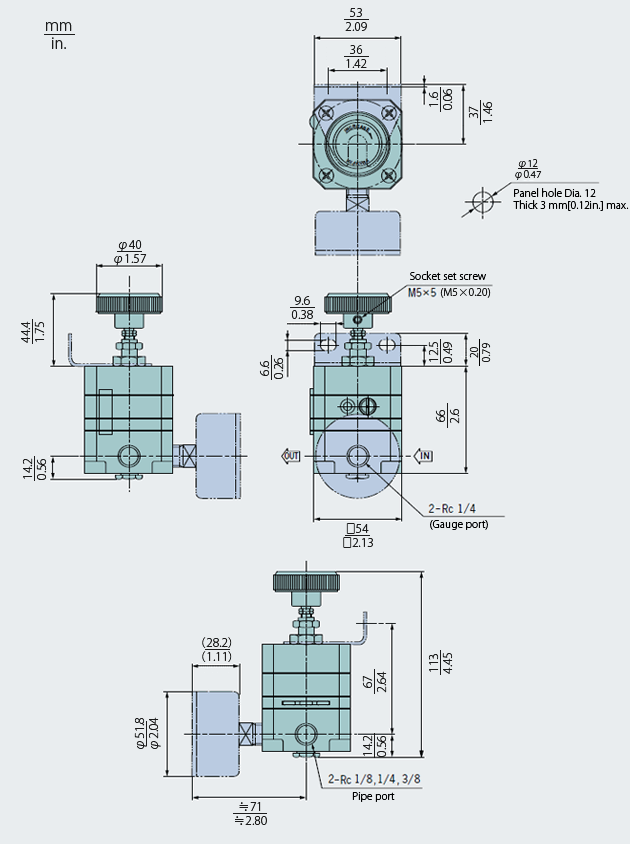

Dimensions
