Compact and light precision air regulator with excellent characteristic specially in setting up a fractional pressure at or under flow rate of 3L/min(0.11scfm).

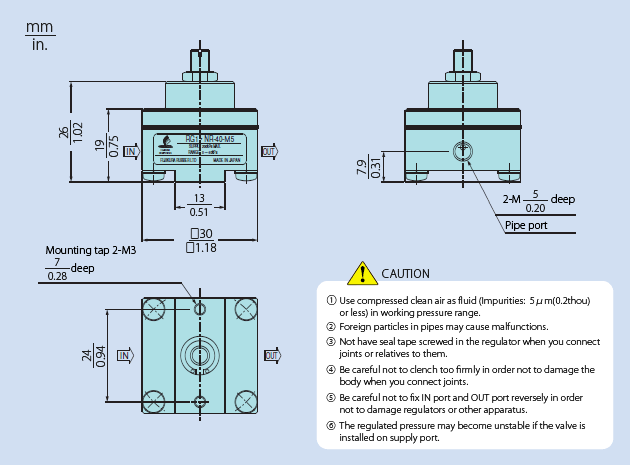

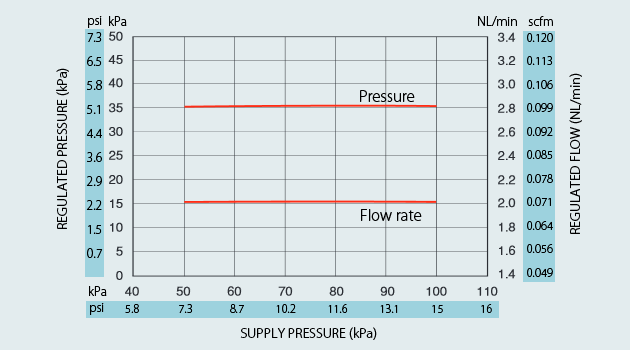

■The most compact construction with port of width 30mm(1.18in.), bonnet of height 26mm(1.02in.) and weight about 50g(0.1pound) allows the best installation in saved space and compact design without care about its weight. ■Excellent performance as air precision regulators at a small flow rate of 3NL/min(0.11scfm) or less. ■Excellent pressure repeatability with good responsiveness by direct acting.
■Ideal for applications that are compact and require pressure characteristics.
Application
