Features

■High pressure range.(SUS316 can use 13MPa [1885.49psi])
■Damages to seal material were reduced by double-touch system (O-ring and metal-seal).
■All metal material adopt SUS316.

Applications

■Machine Tools：Milling machine, NC lathe, laser processing machine etc.
■Industrial furnace：General industrial furnace, heating furnace, vacuum furnace, etc.
■Medical：Endoscope washing device, oxygen concentrator, anesthesia machine etc.
■Analysis equipment:Measurement equipment, component gas analysis, gas analyzer etc.
■Battery：Household fuel cell, secondary battery, gas engine etc.
■Water (liquid) treatment: Pure water production, pure water recycling.
■Gas generator related: Compressor, compact pressure vessel, various gas generator etc.
■Others: Oxygen capsule, gasoline measuring instrument, forklift etc.

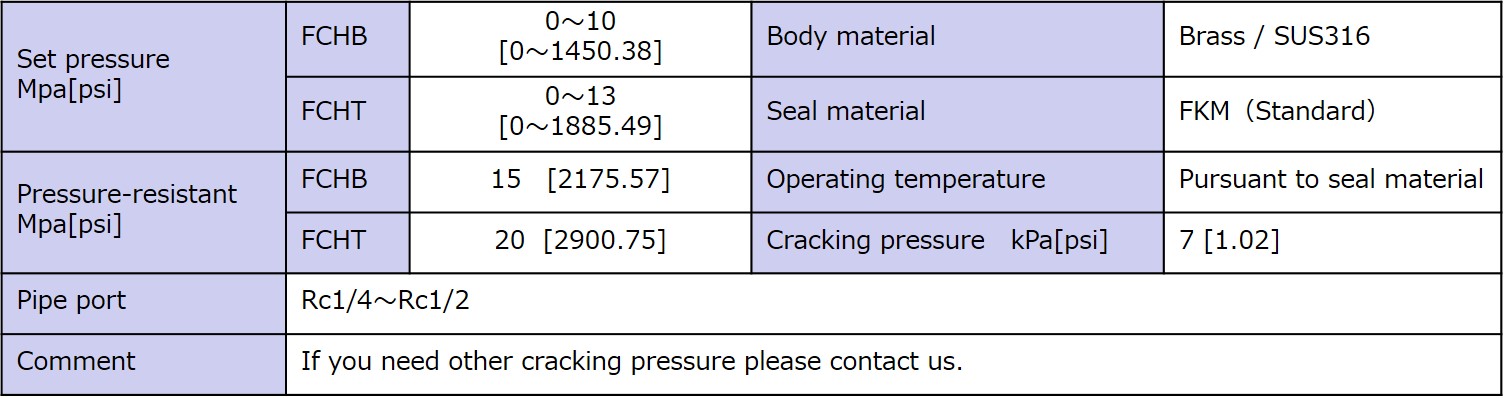

Specifications

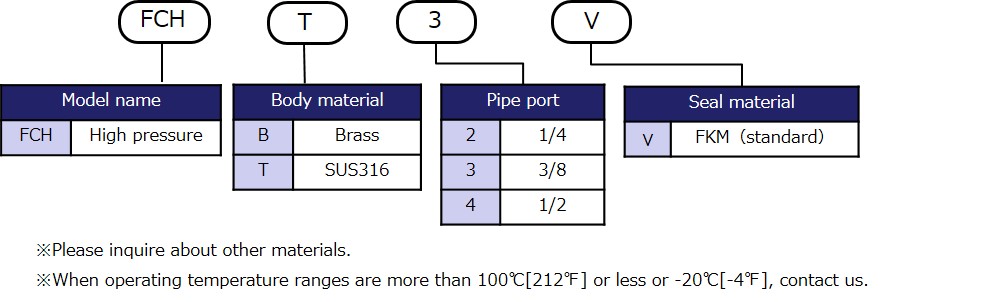

Model designation

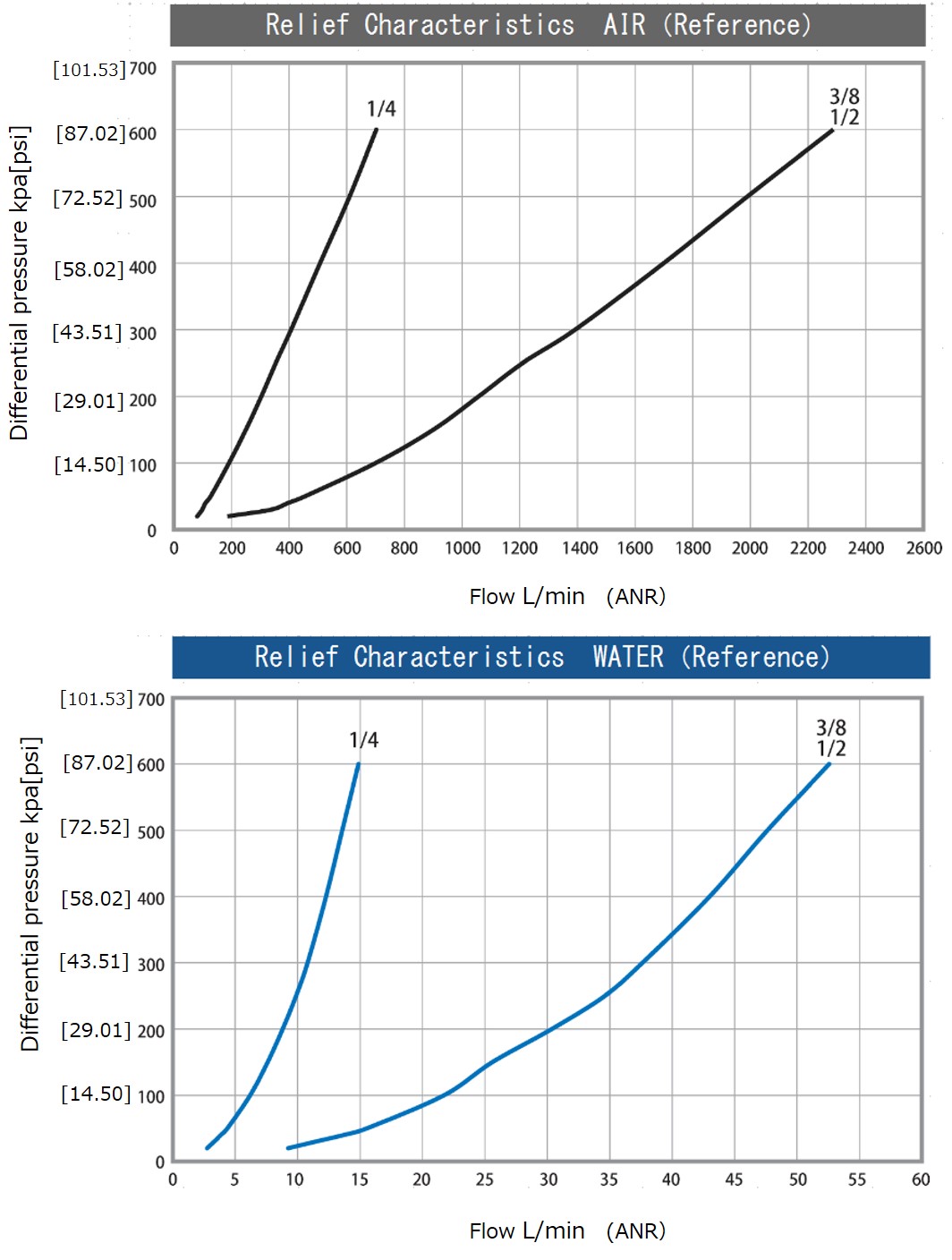

Characteristic

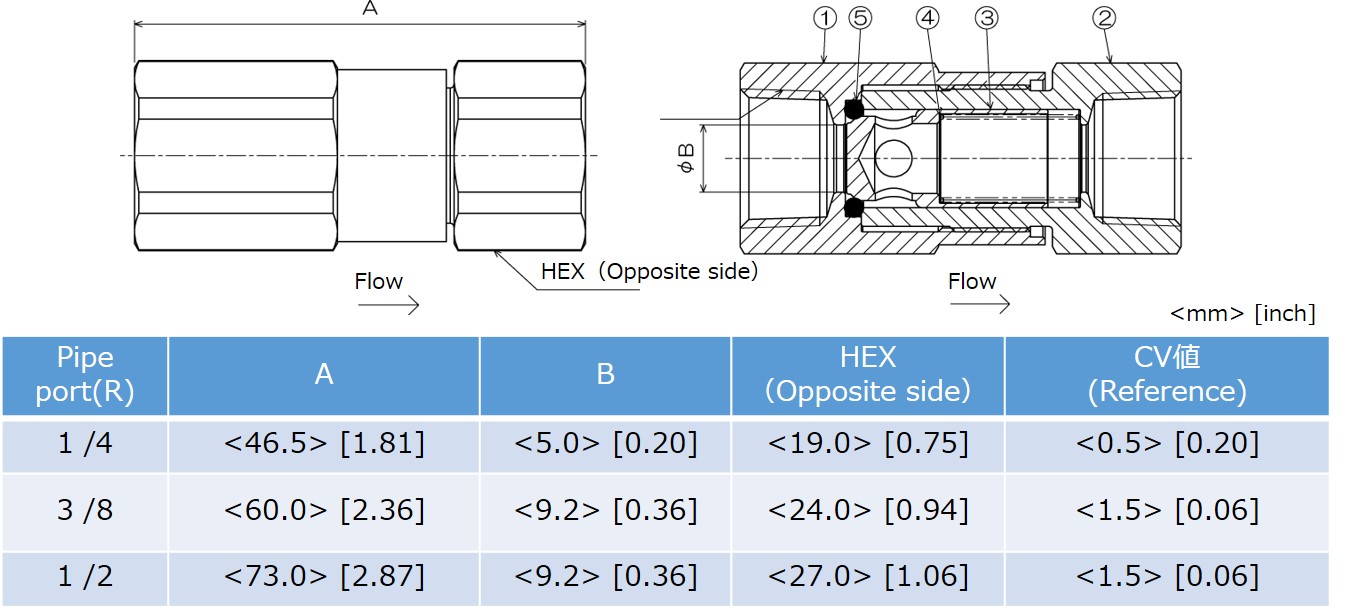

Dimensions
